The Rapid Deployment Foldable Housing Kit typically denotes a prefabricated module/component assembly designed for swift installation, foldable transport, and unfolding into habitable or functional housing or structural units. Its key characteristics include:
Structures, walls, roofs, and potentially pre-installed electrical/plumbing systems are prefabricated in the factory, requiring only unfolding/connection on-site for immediate use.
Foldable or flattened designs facilitate transportation and storage.
Its rapid deployment characteristics render it suitable for emergency, short-term, or temporary applications.
The kit-based approach implies modularity and standardisation, allowing users to combine multiple units as required.
For instance, one manufacturer claims its foldable container housing achieves ‘one unit installed in four minutes’.
Item No :
CN099Product Origin :
ChinaColor :
optionalLead Time :
7-15 Working days after deposit.Brand :
ChaYo
Ultra-Fast Deployment
Ready for use within 2–4 hours, requiring minimal labor and equipment.

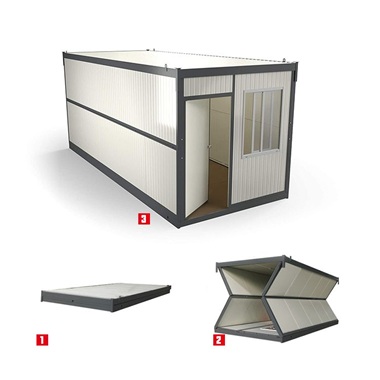

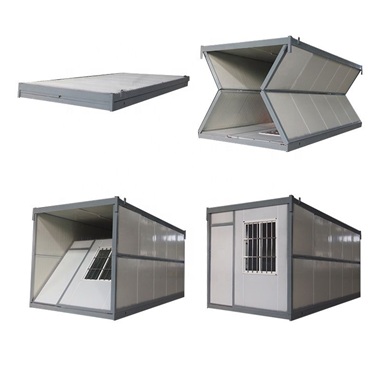

Foldable Modular Structure
Compact during transport, unfolds into a complete housing unit on-site.
Durable & Weather-Resistant
Made from galvanized steel and waterproof insulated panels.
Portable & Reusable
Designed for multiple installations and relocations without performance loss.
Comfortable & Functional Interior
Includes insulation, ventilation, lighting, and optional bathroom or kitchen modules.
Module
| Feature | Basic Residential Model |
| Exterior Dimensions | 5950mm (L) x 3000mm (W) x 2800mm (H) |
| Structural Material | steel structure frame steel structure frame |
| Windows & Doors | Aluminum alloy doors and windows, customizable/optional |
| Flooring | Glass magnesium board/cement board |
| Wall panel | Rock wool board |
| Plumbing | Compact bathroom (toilet, sink, shower) |
| Electrical | 110V/220V wiring, 4 outlets, 2 ceiling lights, smoke detector |
| Weight (Empty) | 5,000 lbs |
| Wind Resistance | Up to 120 mph |
| Snow Load Capacity | 20 lbs/sq ft |
| Certifications | ICC 400 (Modular Construction), LEED Silver Eligible |
Material

Relying on ChaYo's own factory, we provide you with a one-stop cooperation experience for the entire chain, and our core advantages are fully demonstrated with peace of mind:

• High cost performance option: Balancing product quality and cost control, we create a cost-effective solution for you that is of high quality and reasonable price;
• Customized and precise matching: Deeply listen to your needs, customize products and services according to your needs, and accurately match your personalized scenario;
• 1v1 exclusive follow-up: equipped with dedicated liaison personnel, from ordering, production to delivery, one-on-one tracking throughout the process, allowing you to keep track of progress in real time;
• Using fire-resistant, anti-corrosion, and insulation materials that meet standards, with durable, waterproof, and seismic performance
Application
FAQ
Q.How many sets can be loaded in a 20 foot container?
A.A 20 foot container can hold 3 sets.
2.What does this product refer to?
2.It’s a prefabricated modular housing kit that folds down for transport and can be quickly deployed on-site into a living or working space.
3.What materials are used in the house structure?

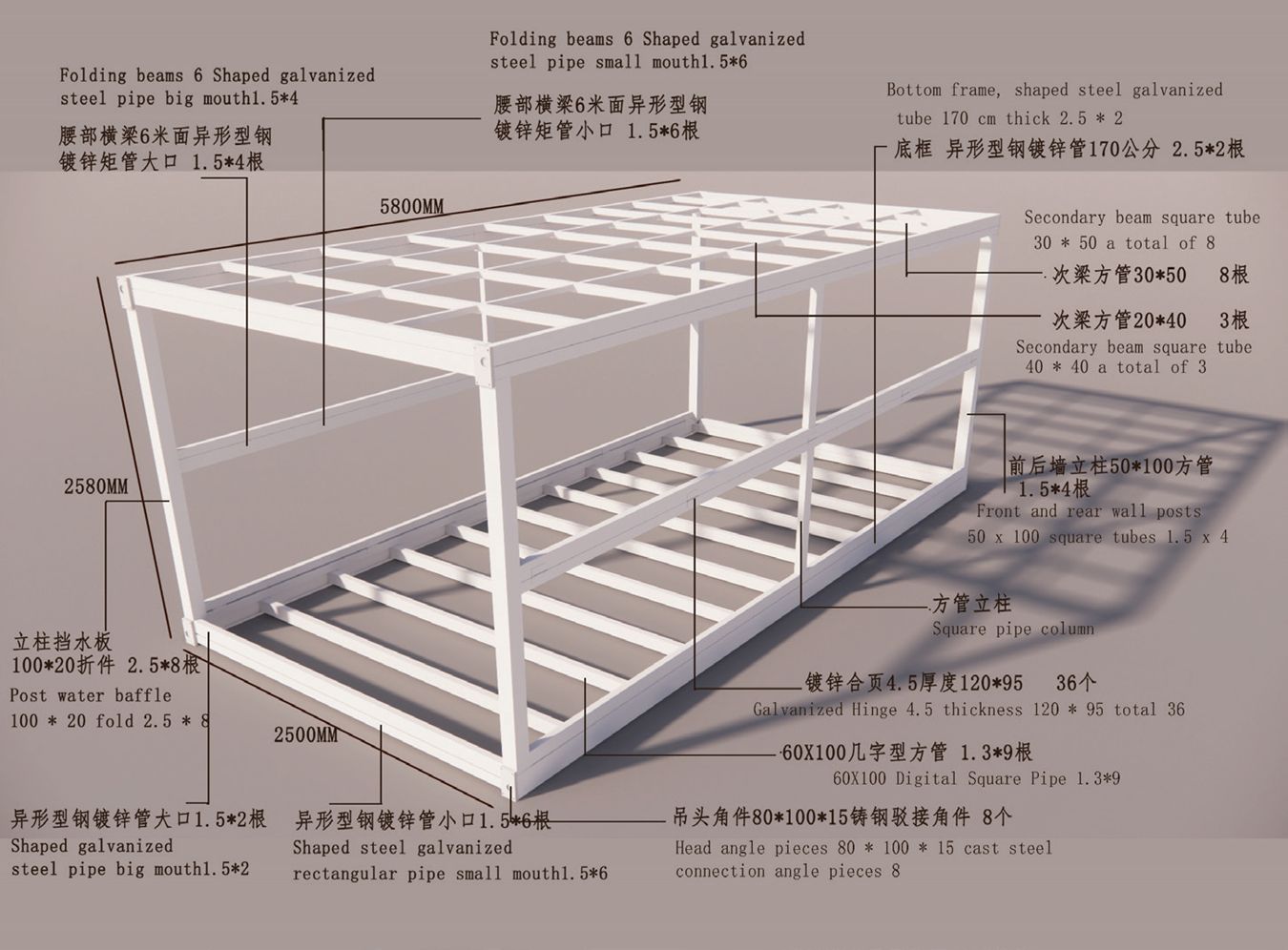

3.The main frame is made of galvanized steel, and the walls and roof are made from insulated sandwich panels (EPS, rock wool, or PU). These materials provide good durability, insulation, and fire resistance.
4.Is it easy to transport?
4.Yes. The folding design allows the house to be packed into a standard container size, which saves on shipping costs and makes it suitable for long-distance transport.
5. What are the main applications?

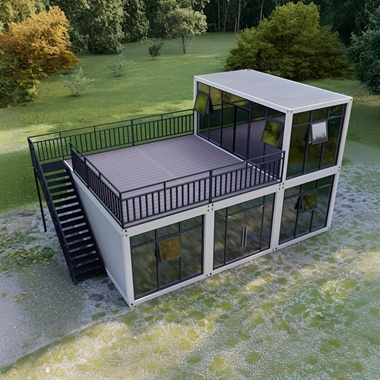

5.It’s widely used for temporary housing, site offices, worker dormitories, vacation cabins, emergency shelters, and mobile shops.
