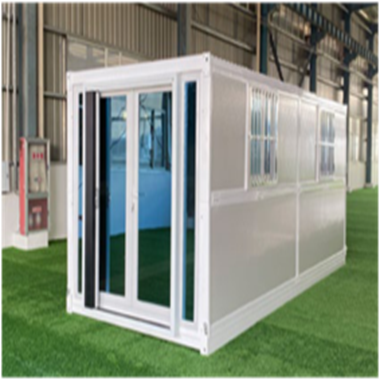

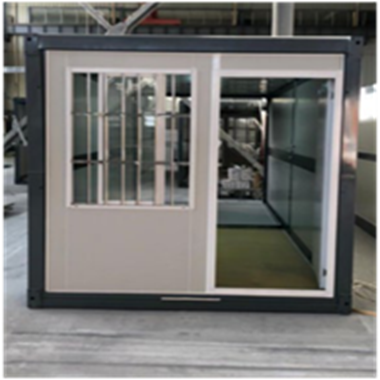

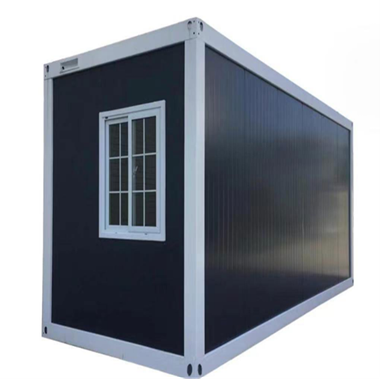

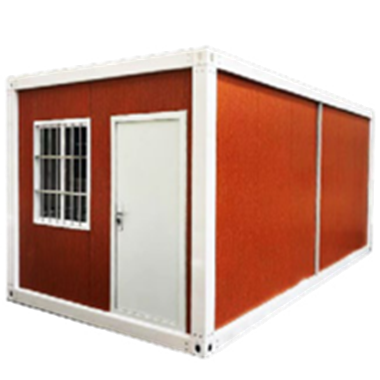

Portable Folding Living Cabin

Portable Folding Living Cabin

Portable folding residential pods refer to prefabricated, foldable/unfoldable building units designed for residential or ancillary purposes, facilitating transport and rapid installation. Typical characteristics include:Factory-prefabricated structures (e.g., steel frames + sandwich panel walls) transported to site.On-site deployment via ‘folding/unfolding’ to reduce transport volume and enhance handling efficiency. Utilisation of movable or lightweight foundations, eliminating the need for substantial conventional foundations.Versatile applications: serves as temporary accommodation, holiday cabins, site offices, residential extension units, etc.In essence, this product bridges the gap between ‘prefabricated houses’ and ‘modular cabins’, incorporating enhanced foldable/transportable portability.

  • Item No :

    CN099
  • Product Origin :

    China
  • Color :

    optional
  • Lead Time :

    7-15 Working days after deposit.
  • Brand :

    ChaYo



Key Features

Easy Folding & Quick Setup
Transported compactly, unfolded into a full cabin in just 2–4 hours.

Strong & Durable Structure
Made from galvanized steel and insulated wall panels for long-lasting protection.

Comfortable Interior Design
Includes insulation, ventilation, lighting, power system, and optional furnishings.

Portable & Reusable
Designed for multiple relocations and repeated use without damage.

Eco-Friendly & Energy-Efficient
Built with recyclable materials and energy-saving systems.

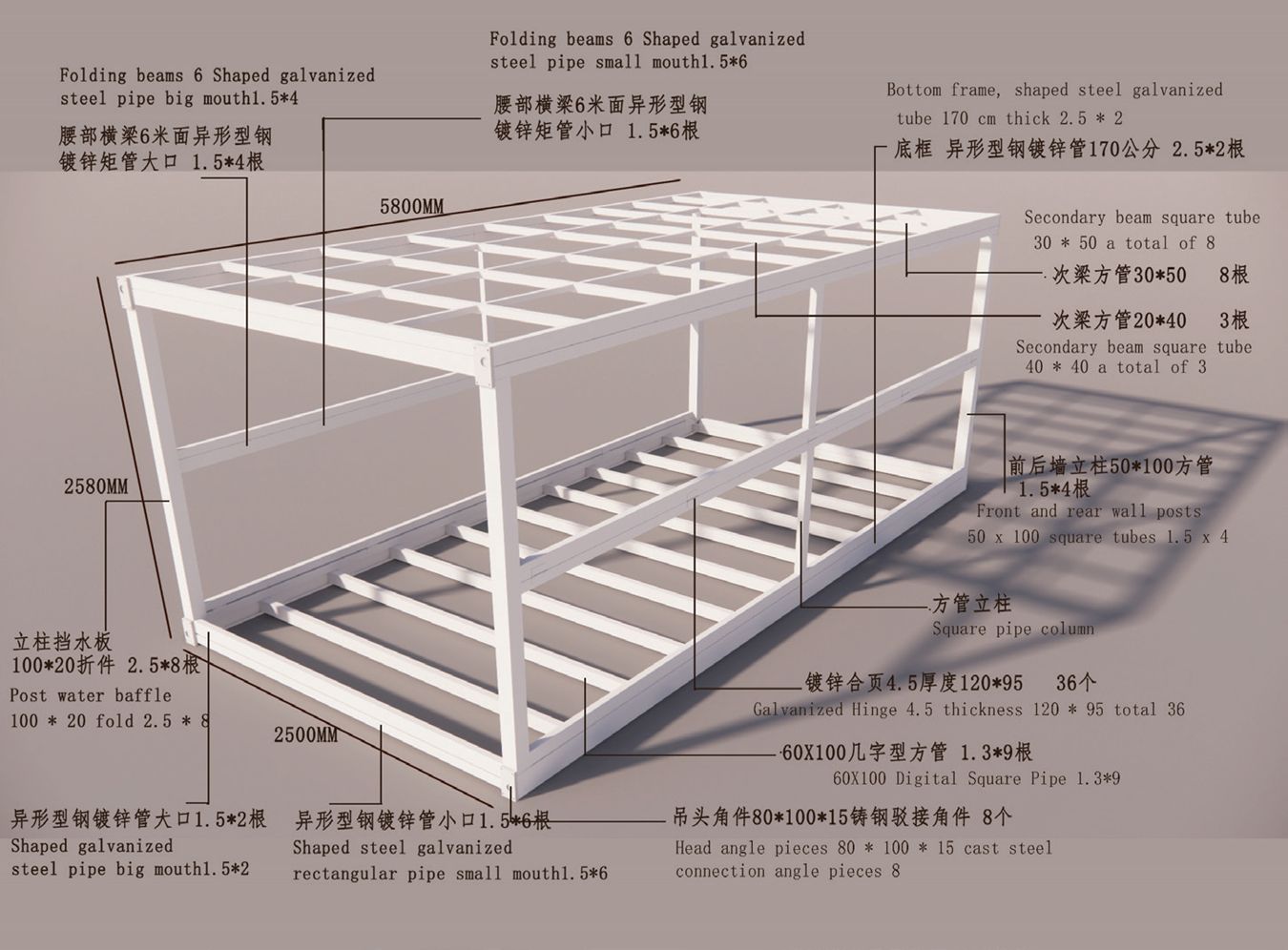

Module

  • #
  • #
  • #
  • #



Technical Specifications (Standard Models)



Feature Basic Residential Model
Exterior Dimensions 5950mm (L) x 3000mm (W) x 2800mm (H)
Structural Material steel structure frame steel structure frame
Windows & Doors Aluminum alloy doors and windows, customizable/optional
Flooring Glass magnesium board/cement board
Wall panel Rock wool board
Plumbing Compact bathroom (toilet, sink, shower)
Electrical 110V/220V wiring, 4 outlets, 2 ceiling lights, smoke detector
Weight (Empty) 5,000 lbs
Wind Resistance Up to 120 mph
Snow Load Capacity 20 lbs/sq ft
Certifications ICC 400 (Modular Construction), LEED Silver Eligible



Material



Why choose ChaYo?

Relying on ChaYo's own factory, we provide you with a one-stop cooperation experience for the entire chain, and our core advantages are fully demonstrated with peace of mind:

• High cost performance option: Balancing product quality and cost control, we create a cost-effective solution for you that is of high quality and reasonable price; ​

• Customized and precise matching: Deeply listen to your needs, customize products and services according to your needs, and accurately match your personalized scenario; ​

• 1v1 exclusive follow-up: equipped with dedicated liaison personnel, from ordering, production to delivery, one-on-one tracking throughout the process, allowing you to keep track of progress in real time; ​

• Using fire-resistant, anti-corrosion, and insulation materials that meet standards, with durable, waterproof, and seismic performance



Application























FAQ

Q.How many sets can be loaded in a 20 foot container?

A.A 20 foot container can hold 3 sets.



2.What is the structure made of?

2.The cabin usually adopts a galvanized steel frame and insulated sandwich panels (EPS, rock wool, or glass wool) for walls and roof, ensuring durability, fire resistance, and heat insulation.



3.What materials are used in the house structure?

3.The main frame is made of galvanized steel, and the walls and roof are made from insulated sandwich panels (EPS, rock wool, or PU). These materials provide good durability, insulation, and fire resistance.



4.Is it easy to transport?

4.Yes. The folding design allows the house to be packed into a standard container size, which saves on shipping costs and makes it suitable for long-distance transport.



5.Can the cabin be moved to another site after use?

5.Yes. The cabin can be folded back and relocated multiple times. It’s ideal for temporary or mobile projects such as construction sites or seasonal housing.
